Variable Diameter Inflatable Pipe Plug – Multi-Pipe Diameter Universal Sealing for Culvert & Sewer

Our variable diameter inflatable pipe plug (also known as multi-diameter pipe plug, inflatable culvert airbag, or universal pipe sealing bag) is a versatile, reusable sealing solution designed to fit a wide range of pipe diameters from 50mm to 1200mm. With low inflation pressure (0.12-0.3 MPa) and lightweight construction, it provides a reliable temporary seal for culverts, sewer lines, storm drains, and pipe testing applications. One plug covers multiple pipe sizes – saving you cost and inventory space.

What is a Variable Diameter Inflatable Pipe Plug?

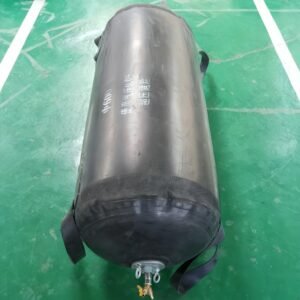

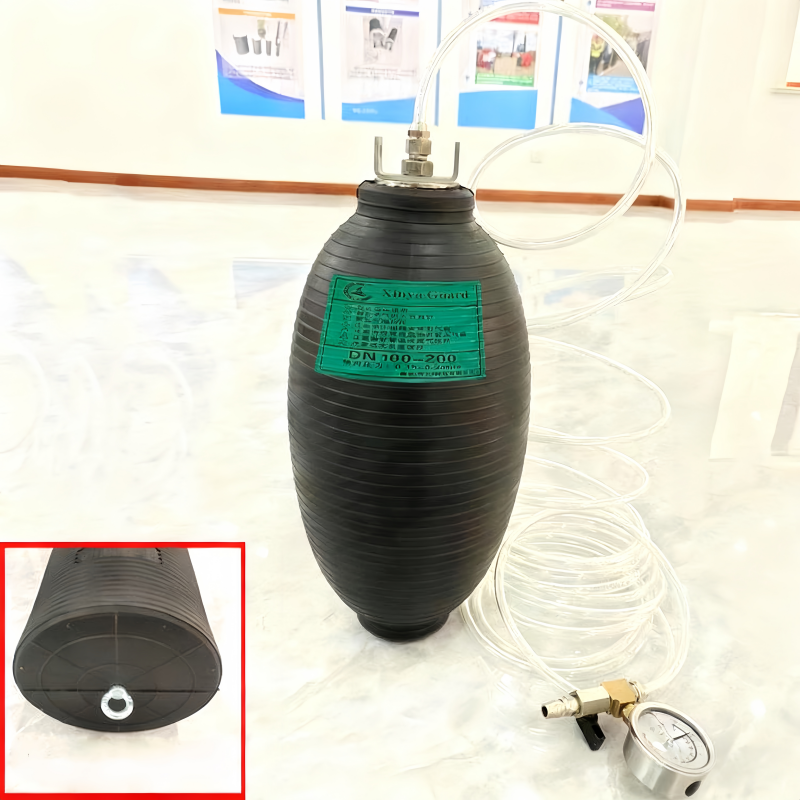

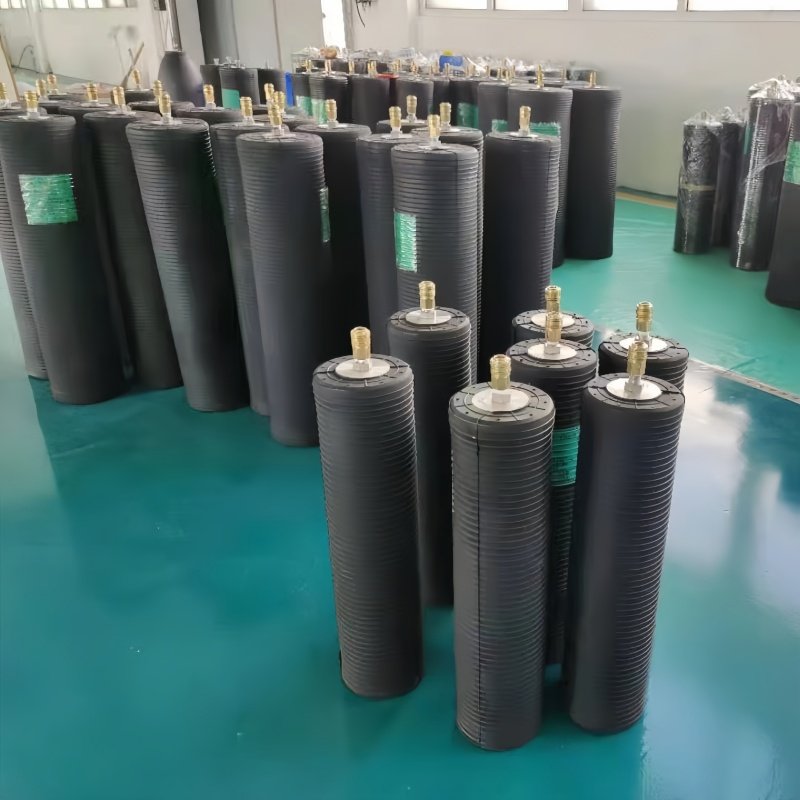

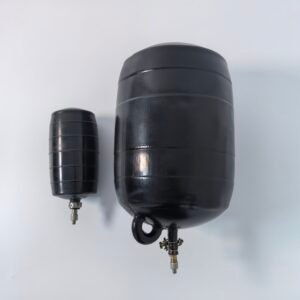

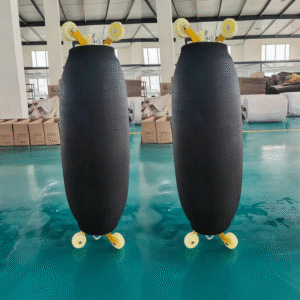

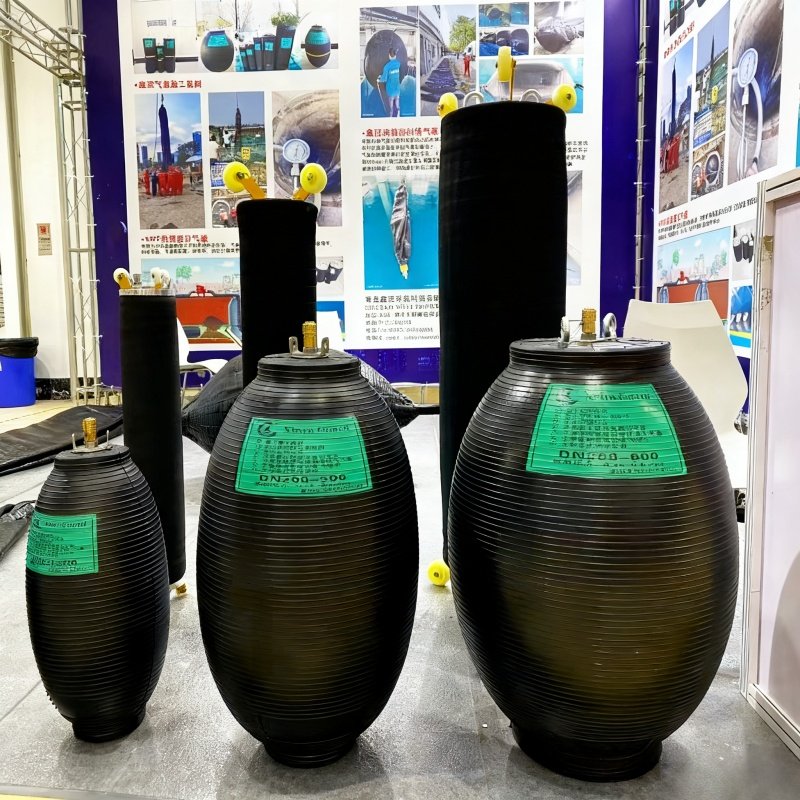

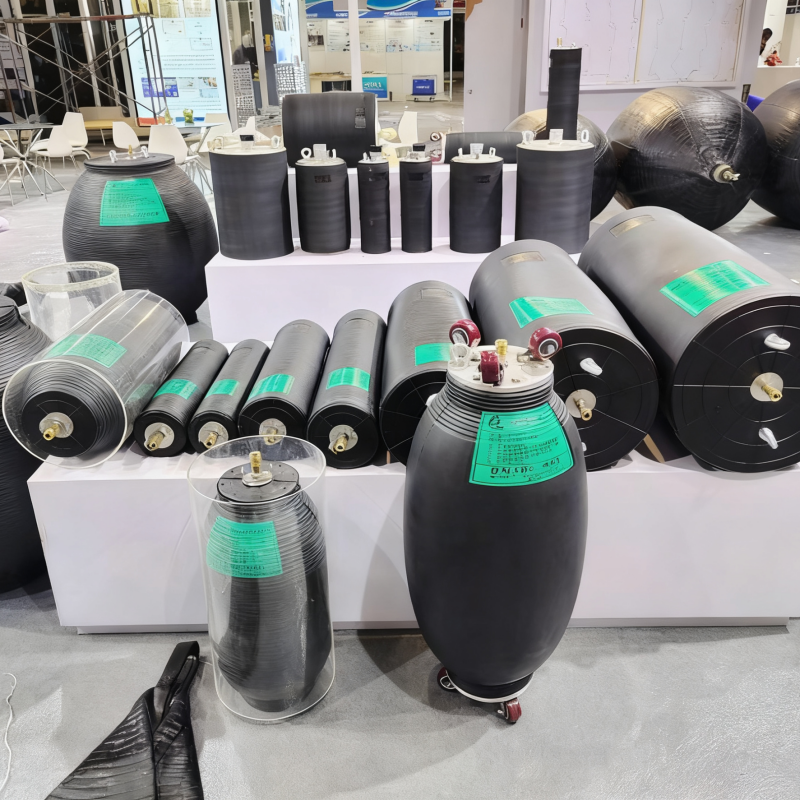

A variable diameter inflatable pipe plug is a flexible rubber bladder that expands upon inflation to seal pipes of different internal diameters. Unlike standard pipe plugs that are sized for a single diameter, our multi-diameter plugs feature an elongated, tapered or ribbed design that adapts to a range of pipe sizes (e.g., 150-300mm). When inflated, the plug conforms to the pipe wall, creating a watertight seal for blocking flow, testing pressure, or isolating sections for maintenance.

Key Features

• Variable diameter coverage – One plug fits multiple pipe sizes (e.g., 50-100mm, 100-200mm, up to 600-1200mm).
• Low inflation pressure – 0.12-0.3 MPa, safe for plastic, concrete, and steel pipes.
• Lightweight & portable – Weights from 0.5 kg to 36 kg, easy to carry and insert.
• Reusable – Designed for hundreds of inflation/deflation cycles with proper care.
• Durable construction – Made from high-strength natural rubber with fiber reinforcement.
• Water depth rating – Suitable for up to 20 meters of water head (depending on model).
• Quick installation – Insert deflated, inflate with hand pump or compressor, deflate and remove.

Technical Specifications

Select the model that matches your pipe diameter range. All models operate at low pressure (0.12-0.3 MPa).

Applications

Our variable diameter inflatable pipe plugs are widely used for:

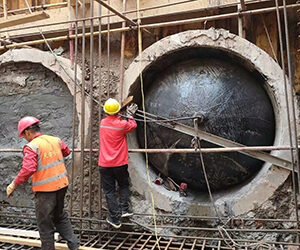

• Culvert sealing – Temporary blocking of box culverts and round culverts during inspection or repair.
• Sewer & drainage testing – Isolating pipe sections for air or water pressure tests.
• Storm drain maintenance – Blocking flow to clean debris or perform CCTV inspections.
• Pipe bypass operations – Used in conjunction with bypass pumps to redirect flow.
• Construction site dewatering – Sealing pipes to prevent water ingress into work areas.
• Emergency pipe repair – Quick temporary seal for leaking or broken pipes.

How to Use (Installation Guide)

1. Select the correct model – Match your pipe’s internal diameter to the applicable range (e.g., 150-300mm).
2. Inspect the pipe – Remove any sharp objects, debris, or protruding rebar that could puncture the plug.
3. Insert the deflated plug – Push the plug into the pipe to the desired sealing position.
4. Connect inflation source – Attach a hand pump or low-pressure air compressor to the valve.
5. Inflate slowly – Inflate to the recommended pressure (see table). Do not exceed the stated pressure.
6. Check the seal – Verify that no water or air passes around the plug.
7. After work, deflate and remove – Release air slowly, then pull the plug out by its handle or eyelet.
8. Clean and store – Wash with water, dry, and store in a cool place away from sunlight.

Frequently Asked Questions (FAQ)

Q: What is the advantage of a variable diameter pipe plug over a standard one?

A: A variable diameter plug can seal multiple pipe sizes, reducing the number of plugs you need to carry. For example, one u150-300 model covers pipes from 150mm to 300mm. This saves cost and simplifies inventory.

Q: Can this plug be used in pipes with flowing water?

A: Yes, but the plug is designed for temporary sealing. For significant flow, we recommend using a bypass pump or selecting a plug with a bypass hose (available upon request).

Q: How deep underwater can these plugs work?

A: Maximum water depth ranges from 5 to 20 meters depending on the model. See the “Max Water Depth” column in the specifications table.

Q: Are these plugs safe for PVC or plastic pipes?

A: Yes. The low inflation pressure (0.12-0.3 MPa) minimizes the risk of pipe deformation, making them safe for PVC, HDPE, concrete, and steel pipes.

Q: How many times can the plug be reused?

A: With proper handling and storage, our variable diameter plugs can be reused 100+ times. Inspect for cuts or abrasion before each use.

Q: Do you offer custom sizes outside the 50-1200mm range?

A: Yes, we can manufacture plugs for larger diameters (up to 3000mm) or custom ranges. Please send your requirements.

Why Choose Guchen Variable Diameter Inflatable Pipe Plugs?

As a professional inflatable pipe plug manufacturer with over 15 years of experience, we offer:

• One plug covers multiple pipe diameters – reduce inventory and cost.
• High-quality natural rubber with reinforcement – excellent tear resistance and durability.
• Low pressure design – safe for all pipe materials.
• Strict quality control – each plug tested for leaks and pressure retention.
• Custom sizes, bypass options, and special materials (EPDM, NBR) available.
• Factory direct prices with fast worldwide shipping.
• Technical support and installation guidance.

📞 Get a quote for variable diameter inflatable pipe plugs – Send your pipe diameter range, application, and quantity. We will reply within 24 hours.
